18" Spring Fork Assembly Black 1936 / 1952 W 1936 / 1940 G with inside rockers1941 / 1957 G

18" Spring Fork Assembly Black 1936 / 1952 W 1936 / 1940 G with inside rockers1941 / 1957 G

by V-TWIN MANUFACTURING
SKU 49-1762
$1,510.00 - $1,510.00
$1,510.00
$1,510.00 - $1,510.00
$1,510.00

OEM No:

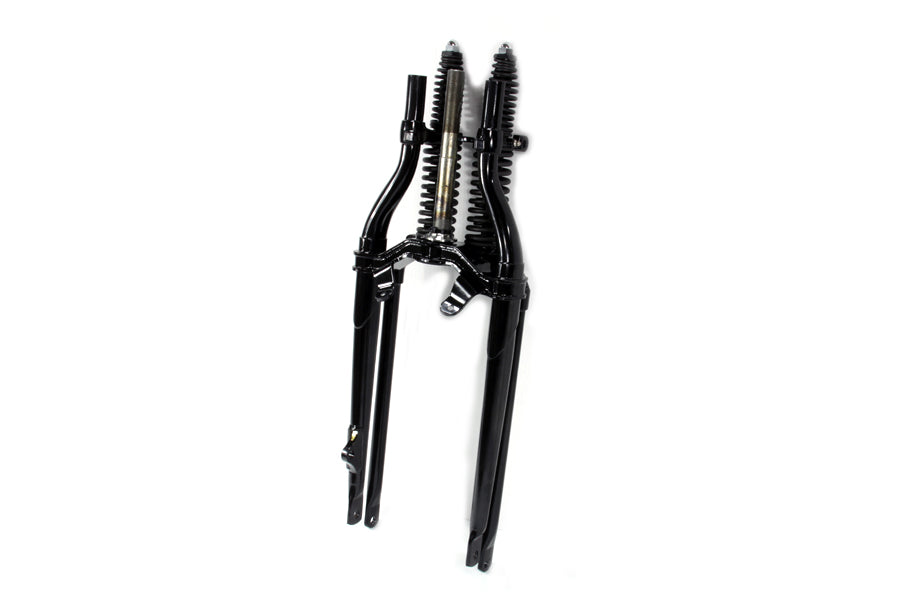

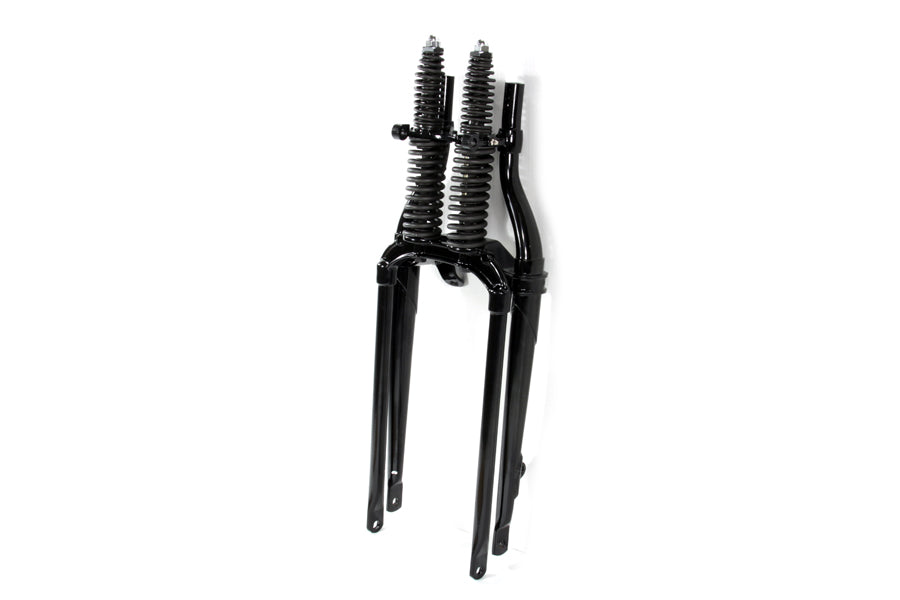

Black spring fork assembly is completely assembled with inner springs. Fork has a 7/8 non removable stem. *NOTE: Rocker set not included must order separately as required. For 45 Solo applications rockers with 3/8 axle holes are mounted on the inside of the fork legs using 7/16 threaded stud. For 1941-57 Servi-Car applications offset rockers are mounted on the outside of the fork with a bolt on 5-bolt lug star hub wheel and studs that are 1/2 . Rocker mount holes are drilled to 7/16 but must be enlarged to 1/2 for offset rockers. The distance between the rockers measure 6.5 . The distance between the rockers measures 6-1/2 . *NOTE: We measure from the top of the rear leg (tube) to the front axle center line.

FITMENT

  • 1936 / 1952 W
  • 1936 / 1940 G with inside rockers
  • 1941 / 1957 G

    • TECH NOTES

  • Suggested to use with #49-2582 Rocker Set Black for offset rockers.
  • Suggested to use with #49-0335 Fork Rocker Set Black for inside rockers.
  • How we measure Spring Forks. NOTE: Measurement is from the triple tree where stem and lower bearing sits to the axle position. This is the effective length as it is the legnth
  • from the lower bearing cup on the frame to axle. Installer can slide a pipe or solid bar thru the bearing cups and measure the length that may be needed for the desired frame
  • height. This Spring Fork assembly accepts a 3/4inch axle for custom applications. As rockers are not offset (as on replica Spring Forks). 1inch stem utilized tapered bearings for
  • ease of installation.

    • MEASURMENTS

  • Length: 18 inches

    • ACCESSORY ITEMS

  • 49-0235
  • 49-0318
  • 49-2582
  • 49-1763

    • Model Fitment

    Accessory Items:

    Tech Notes:

    Measurements:
