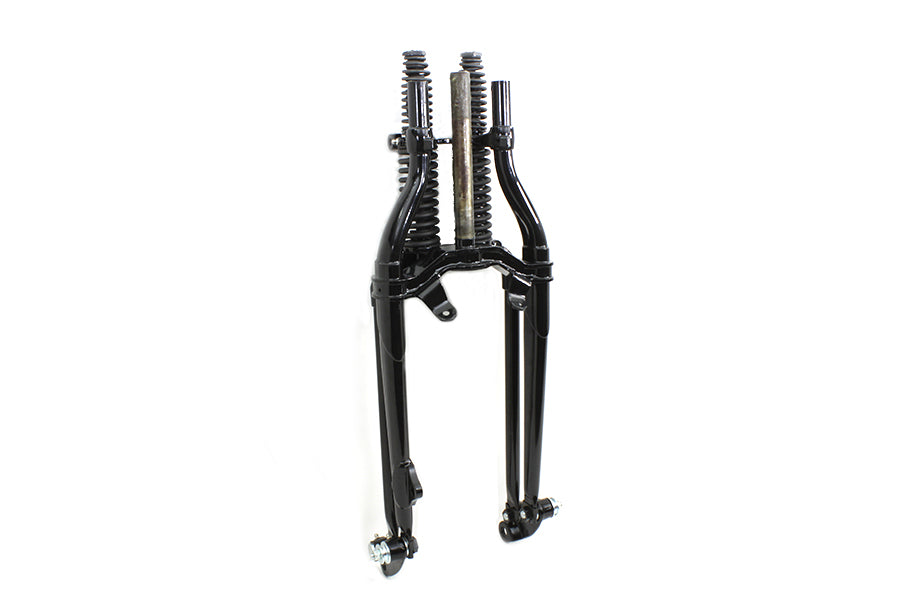

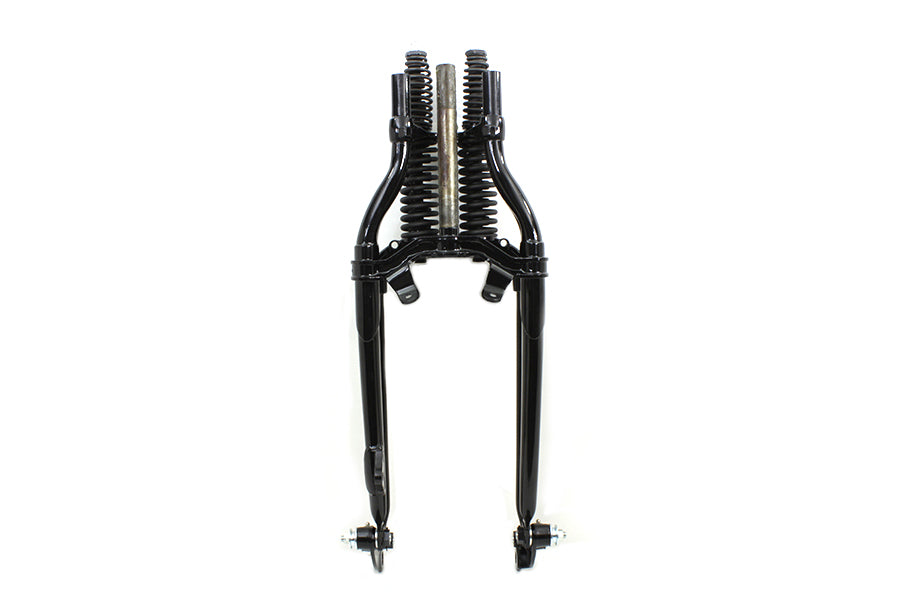

18" Inline Spring Fork Assembly 1941 / 1945 FL 1937 / 1945 UL 1936 / 1940 EL

18" Inline Spring Fork Assembly 1941 / 1945 FL 1937 / 1945 UL 1936 / 1940 EL

by V-TWIN MANUFACTURING
SKU 49-2900
$1,584.46 - $1,584.46
$1,584.46
$1,584.46 - $1,584.46
$1,584.46

OEM No:

Kit includes front and rear black powder coated legs parkerized outer springs black rockers and zinc plated rocker studs. It comes completely assembled with a 1 stem with 1 x 24 thread. Order bearing neck kit axle kit top tree and handlebars separately. Some assembly may be required. Bottom of neck is larger in diameter to accommodate the Lower Race. Rear fork leg is not tapped use standard tap *NOTE: Does not have the casting marks. *NOTE: Length measured from bottom of lower race to center of axle on rocerks. See diagram. This complete replica Spring Fork assembly is a product of 14 separate processes: Tubing Hydraulic Swage Press Investment Casting Forging Flattening Press Robotic Welding Brazing Polish Chrome Paint Spring Winder Machine Shop Drill Shop and Packaging.

FITMENT

  • 1941 / 1945 FL
  • 1937 / 1945 UL
  • 1936 / 1940 EL

    • TECH NOTES

  • *NOTE: Must order shock ride control axle assembly top tree and bearing kit as required.
  • How we measure Spring Forks. NOTE: Measurement is from the triple tree where stem and lower bearing sits to the axle position. This is the effective length as it is the legnth
  • from the lower bearing cup on the frame to axle. Installer can slide a pipe or solid bar thru the bearing cups and measure the length that may be needed for the desired frame
  • height. This Spring Fork assembly accepts a 3/4inch axle for custom applications. As rockers are not offset (as on replica Spring Forks). 1inch stem utilized tapered bearings for
  • ease of installation.
  • Suggested to use with #24-0150 Stem Cone Nut Black.

    • MEASURMENTS

  • Length: 18 inches
  • Axle Size: 3/4 inches
  • Between Rockers: 8 inches

    • ACCESSORY ITEMS

  • 49-2519
  • 49-2420
  • 49-1924
  • 49-1942
