Two Light Dash Base Wiring Harness Assembly 1947 / FL only1947 / 1952 W 1947 / 1963 G

Two Light Dash Base Wiring Harness Assembly 1947 / FL only1947 / 1952 W 1947 / 1963 G

by V-TWIN MANUFACTURING
SKU 39-0190
$373.51 - $373.51
$373.51
$404.24
$404.24 - $404.24
$404.24

OEM No:

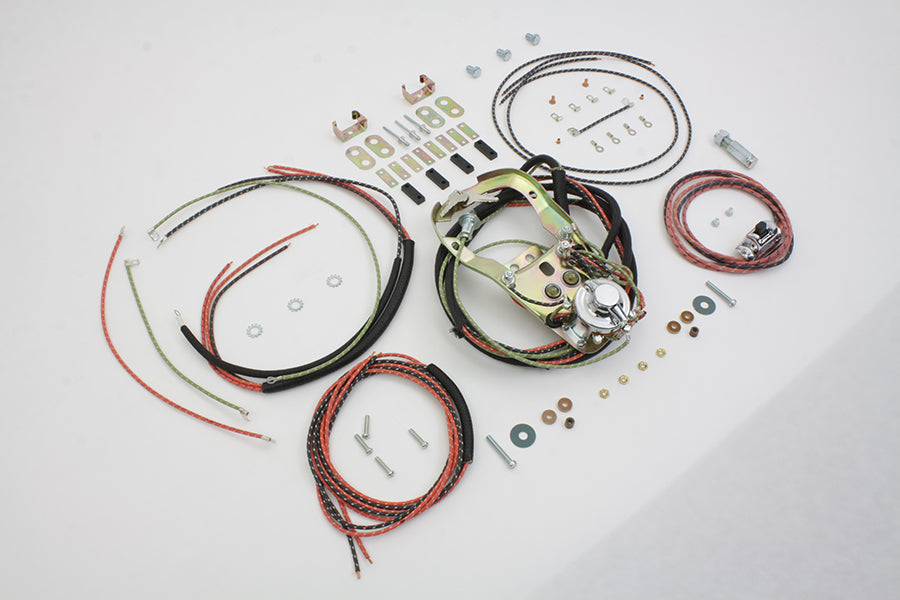

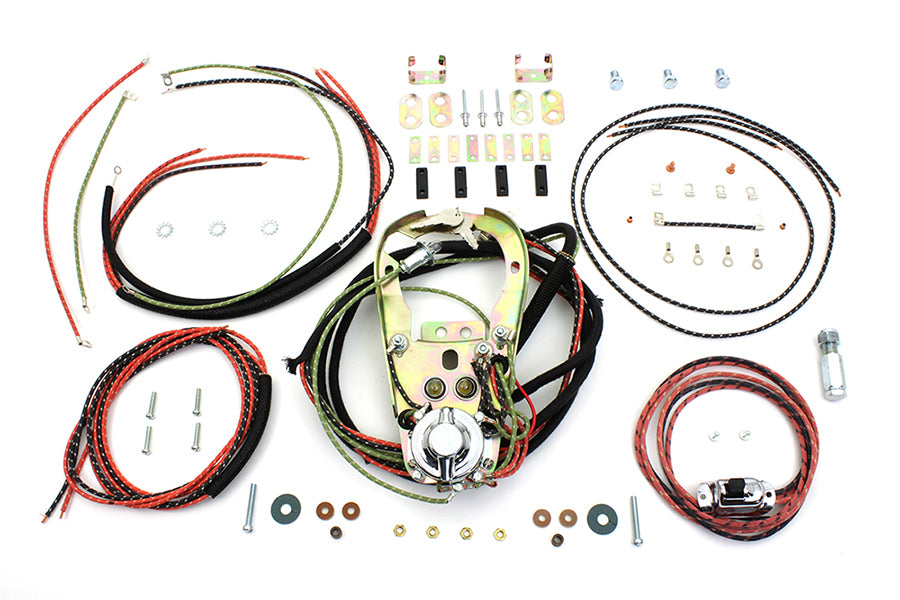

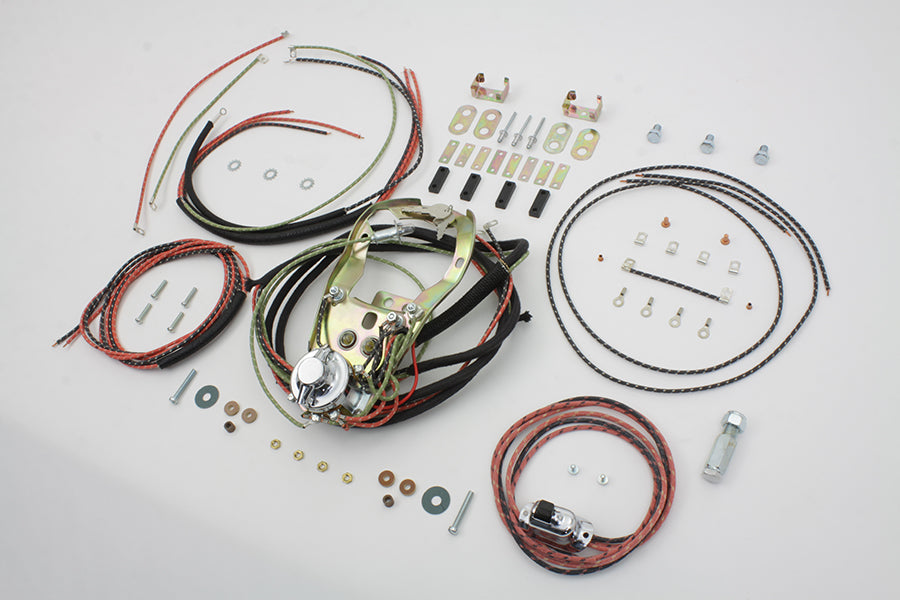

Two light wiring harness dash base assembly is for a three brush generator. Assembly includes harness pre-wired to dash base a 5 post key switch terminal box horn button dimmer switch headlamp connection wire loom and speedometer lamp socket. Switch and wiring are tested after final assembly. Order the appropriate factory service manual to facilitate wire harness installation. Terminal screw kit #8942-14 is included for this assembly which fits 1947 Knucklehead only this will replace the terminal board which is used for 1948-57 models.

FITMENT

  • 1947 / FL only
  • 1947 / 1952 W
  • 1947 / 1963 G

    • ACCESSORY ITEMS

  • 39-0111
  • 16-0529
  • 31-0201

    • REPLACEMENT PARTS

  • 32-0447
  • 33-0139
  • 33-0132
