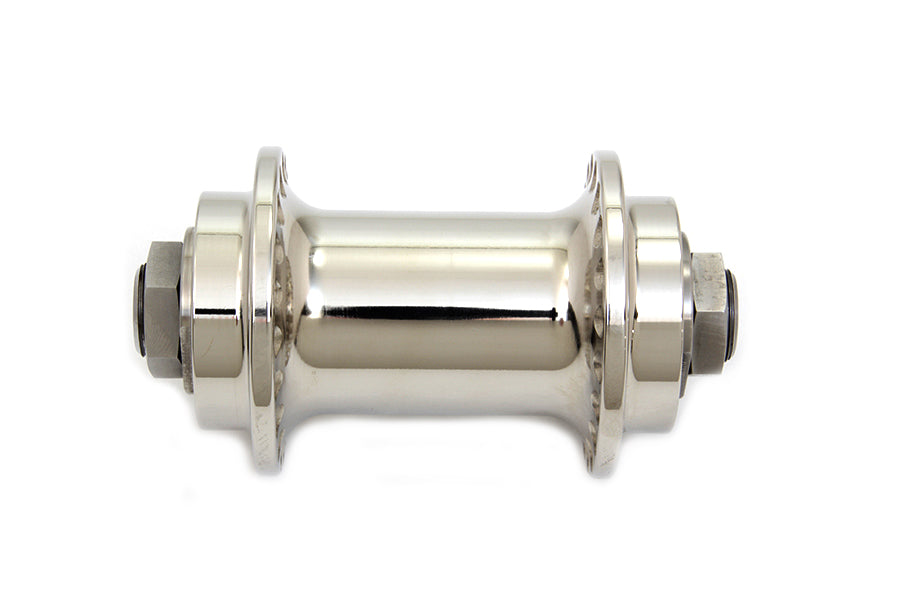

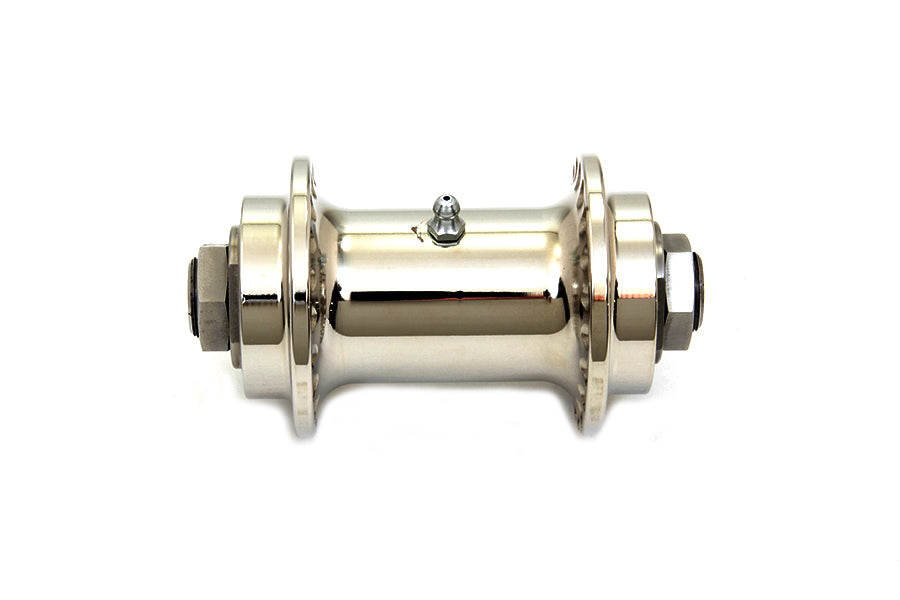

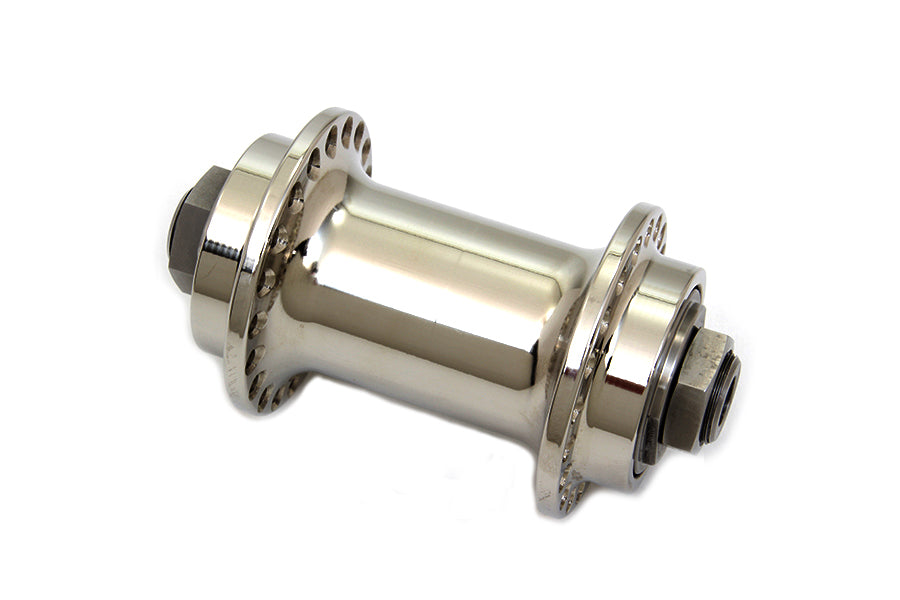

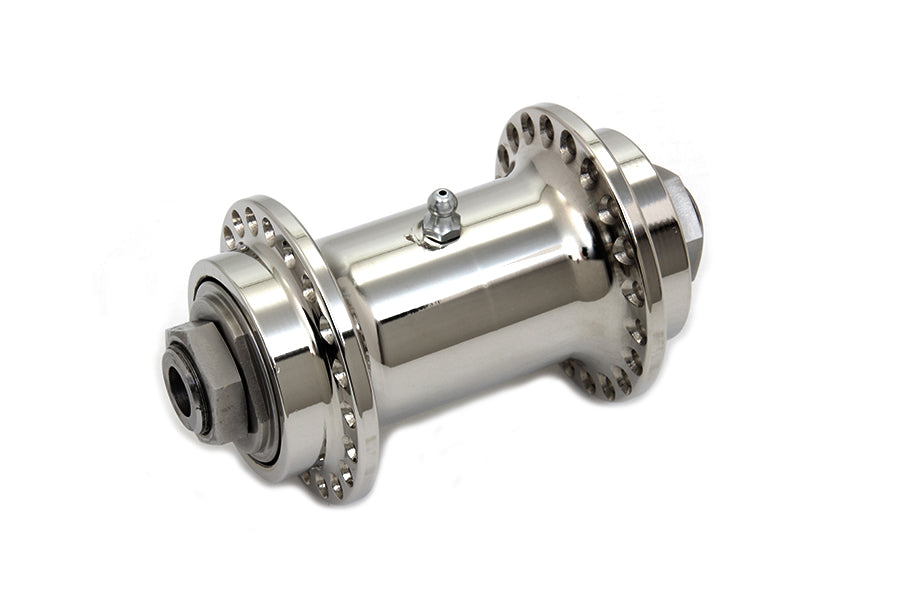

WR Front Spool Hub 1930 / 1952 W

Front spool hub is nickel plated and includes 3/8 internal ball bearings that accepts stock WL 45 axle and nuts. Includes a 3/8 inner diameter threaded sleeve to adapt the sealed ball bearings on each side. Will accept a 4.9 wide axle and nuts for use on WL 45 Spring Forks with inside rocker configuration. Center tube of hub measures to be 6.5 . Does not require spacers for installation on WL fork assemblies. For use on 18 rim stainless steel spoke set. The distance between the inside of the rocker on a 45 WL spring fork measyres 6-1/2 . *NOTE: Hub is fitted with sealed ball bearings and a spacer with a 3/8 inner diameter. Hub width measures 5 . Grease fitting holes is tapped 5/16 x 32. Order tap tool if needed. *NOTE: Accepts 6-8 gauge spokes. The crease fitting is for cosmetic looks only. Order 7/16 axle separately.

FITMENT

TECH NOTES

MEASURMENTS

ACCESSORY ITEMS
