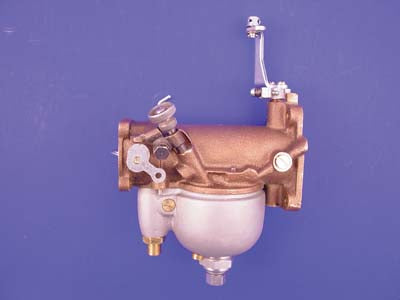

Replica Linkert M74 Carburetor 1941 / 1965 FL

Replica Linkert M74 Carburetor 1941 / 1965 FL

by V-TWIN MANUFACTURING
SKU 35-0082
Sold out
$620.22 - $620.22
$620.22
$725.31
$725.31 - $725.31
$725.31

OEM No:

Replica M-74 Linkert carburetor is assembled and includes a complete replica linkert carburetor body with a 4 bolt mount flange with full brass construction. All linkerts are supplied in natural finish just like the original! 1-1/2 carburetor assembly includes the top throttle arm assembly installed and with a 1-5/8 venturi. Part is casting only without hardware. M-74 with choke pen between arm and washer face right side. *NOTE: Must order related parts and hardware separately. *NOTE: Throttle arm supplied is specifically for 1949-1965 FL models. Arm may be changed to fit early 1941-1948 EL and FL models. ***NOTE: Sold outright. No exchange necessary. All parts are brand new including the nitrophyl unsinkable float. Assembled by the V-Twin Motor Shop in New York!

FITMENT

  • 1941 / 1965 FL

    • TECH NOTES

  • Raise float level 1/8inch. Increase the size of the small idle slot hole behind the plug by .005inch from .020inch to .025inch. Cut baloney slice on top of main jet and face toward motor for
  • more spray.
  • *NOTEinch M-74 jet goes toward the high speed needle the other holes get plugged.

    • ACCESSORY ITEMS

  • 35-0373
  • 35-0043
  • 35-1899
  • 35-1460

    • REPLACEMENT PARTS

  • 35-0079

    • Model Fitment

    Accessory Items:

    Tech Notes:

    Measurements:
