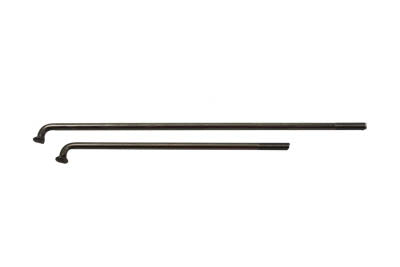

Polished Stainless Steel 16 Spoke Set 1940 / 1952 WL

Polished Stainless Steel 16 Spoke Set 1940 / 1952 WL

by V-TWIN MANUFACTURING
SKU 45-0752
$154.50 - $154.50
$154.50
$174.01
$174.01 - $174.01
$174.01

OEM No:

Polished stainless steel front spoke set features an OE style drop center rim 20 long and 20 short shank spokes with 40 spoke nipples. 9 gauge single stage spokes feature a natural finish. Spokes are easy to clean and maintain. For use on a 16 drop center or OE rim with a solo hub. *NOTE: We suggest using 22mm long nipples when lacing 45 Front drum wheels. *NOTE: If required longer nipples are available separately.

FITMENT

  • 1940 / 1952 WL

    • TECH NOTES

  • Suggested to use with #52-0966 Replica 16inch x 3.00inch Drop Center Wheel Rim Chrome.
  • Suggested to use with #52-0967 Replica 16inch x 3.00inch Drop Center Wheel Rim Black.
  • Required to use with #45-0922 40 Piece Spoke Nipple Set Stainless Steel if longer nipples are needed.
  • Suggested to use with #45-0927 Spoke 40 Piece Stainless Steel Nipple Set when lacing 45 front drum wheels.
  • Information for lacing the 16inch 45inch wheel: Drum Side - Top cross 2 clockwise spoke head down. Lower spoke cross 2 counter clockwise spoke head up.
  • Spook side - top cross 4 clockwise. Bottom cross 4 counter clockwise. 11/16inch offset from drum side flange to rim.

    • MEASURMENTS

  • Diameter: 3.5mm
  • Long Spoke Length: 119mm
  • Short Spoke Length: 175mm

    • ACCESSORY ITEMS

  • 52-0966
  • 52-0967
  • 52-0756
  • 45-0927

    • Model Fitment

    Accessory Items:

    Tech Notes:

    Measurements:
