Replica Black Oil Tank 1941 / 1957 FL 1938 / 1947 UL 1936 / 1940 EL

Name: Replica Black Oil Tank 1941 / 1957 FL 1938 / 1947 UL 1936 / 1940 EL
Brand: V-TWIN MANUFACTURING
SKU: 40-0639
Price: 232.1 USD
Availability: InStock

by V-TWIN MANUFACTURING

SKU 40-0639

$192.29 - $192.29

$192.29

$232.10

$232.10 - $232.10

$232.10

OEM No:

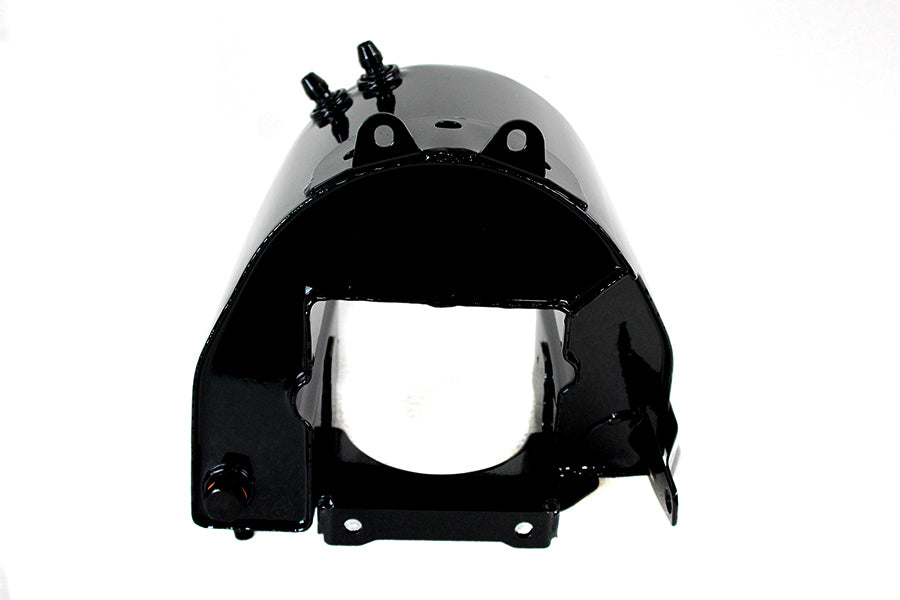

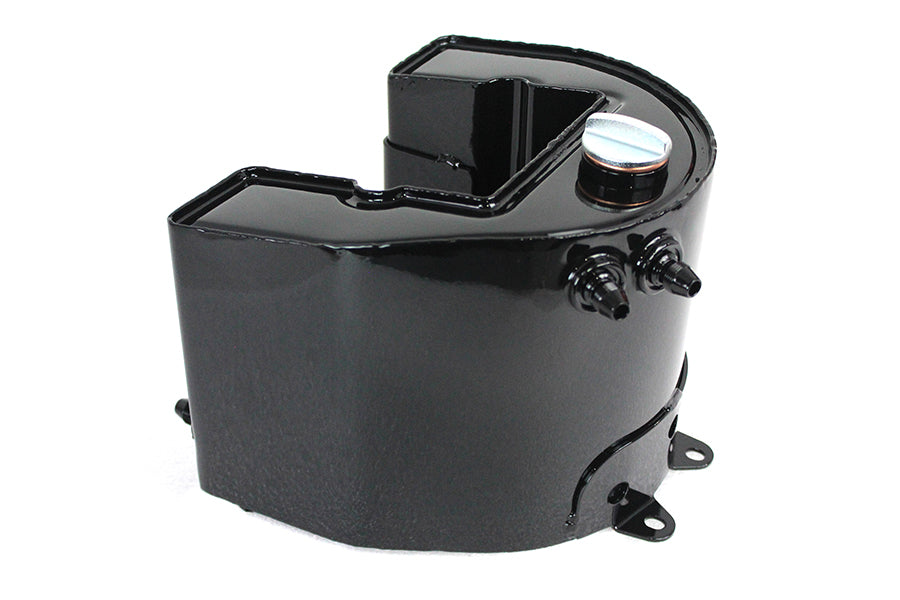

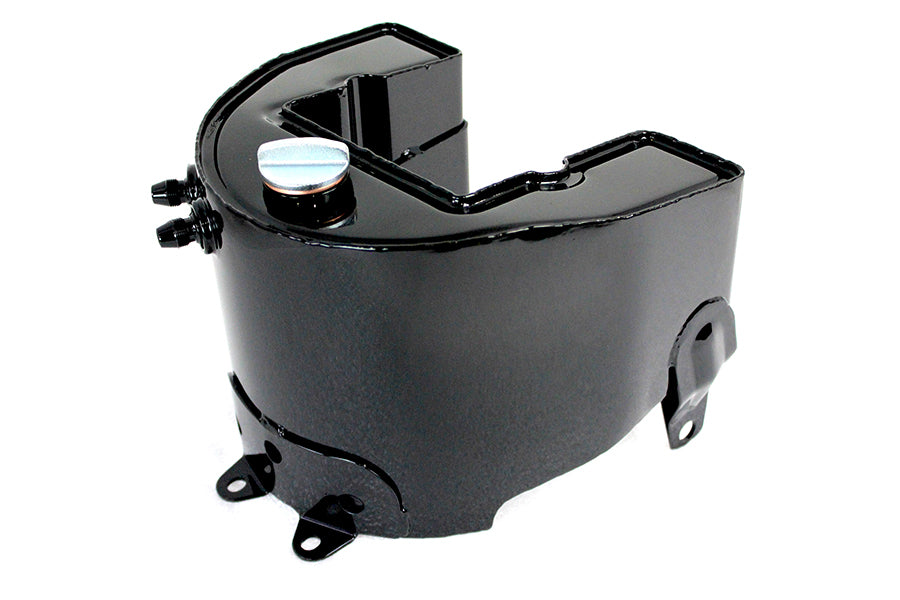

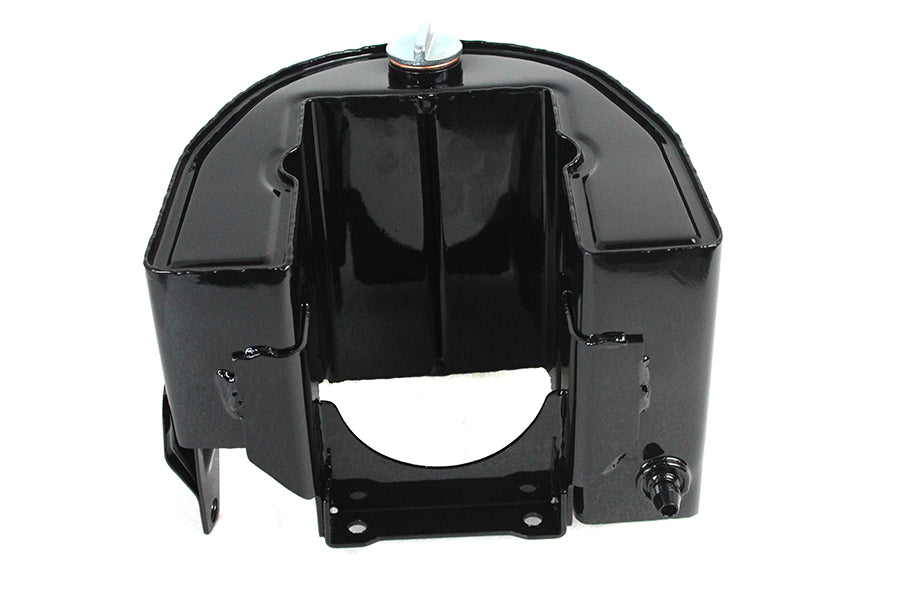

2020 New Production replica black painted wrap around oil tank features seam-welded edges which show weld marks as on original tanks. Black tank has a zinc plated cap and is equipped with a screw in dipstick that includes a copper sealing washer. This tank does not have battery rod tabs. *NOTE: The battery compartment dimensions are 5 wide x 4-1/2 long x 7 tall.

FITMENT

1941 / 1957 FL

1938 / 1947 UL

1936 / 1940 EL

TECH NOTES

Suggested to use #8115-1 or #8114-1 Stock Type Timing Plug.

Suggested to use with #9601-10 Inner Primary Cover and Chain Mount Kit.

Suggested to use with #9504-1 Parkerized Timing and Oil Tank Plug.

MEASURMENTS

Height Front: 7 inches

Height Rear: 6-1/2 inches

Depth: 8-1/4 inches

Depth of Battery: 5-1/4 inches

Width: 10 inches

Battery Width: 4-3/4 inches

ACCESSORY ITEMS

40-0489

40-0424

40-0432
