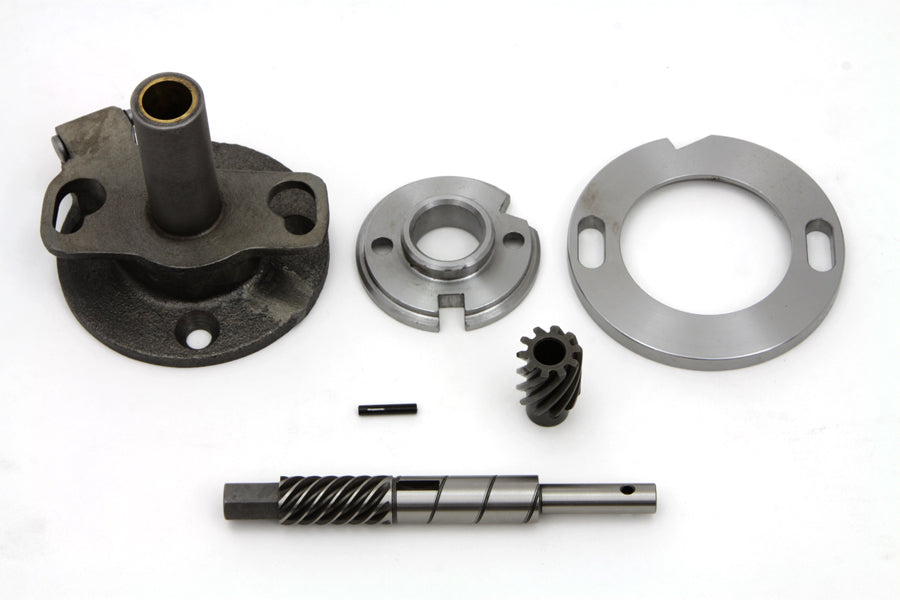

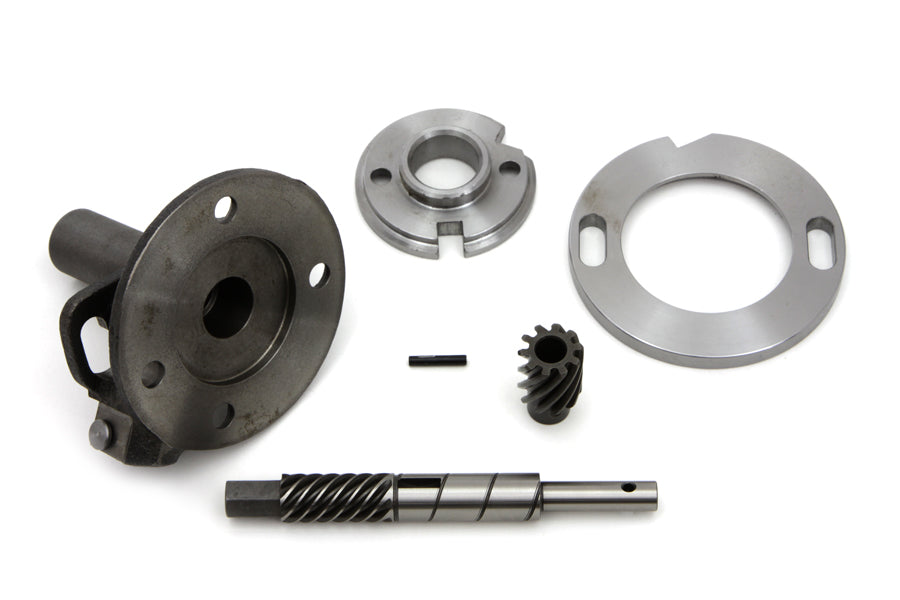

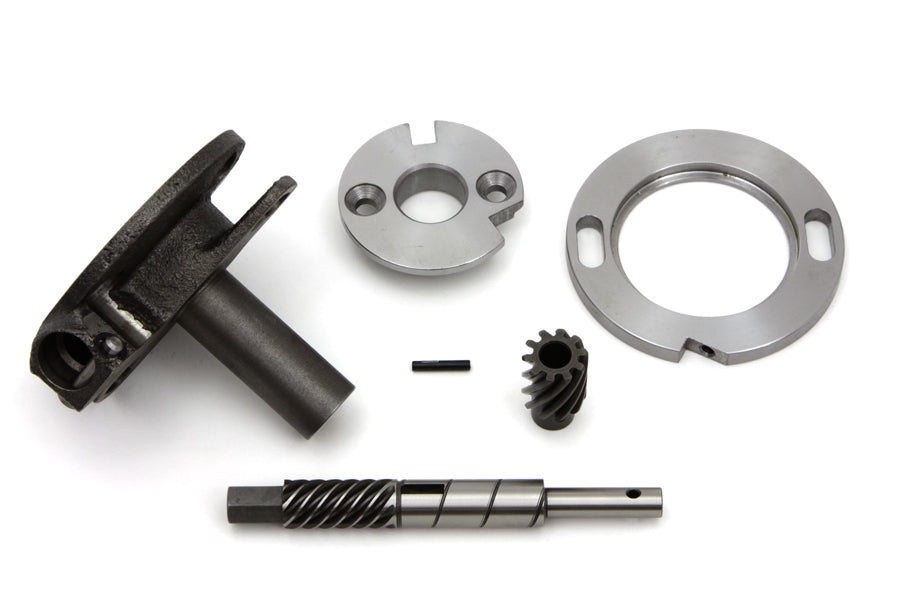

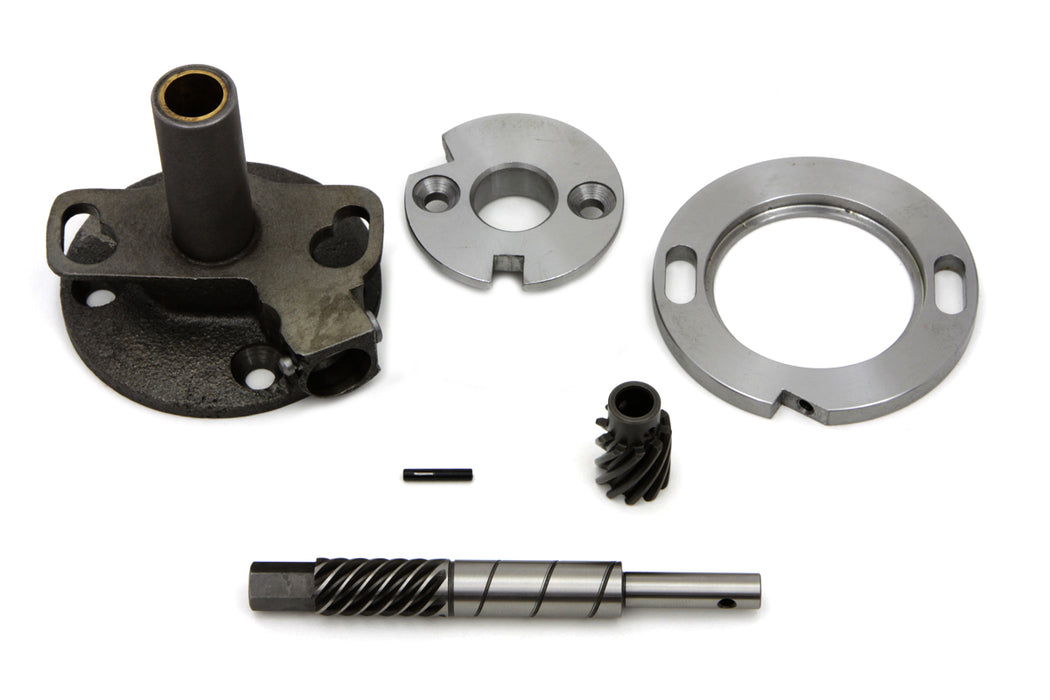

Replica Magneto Driveshaft Assembly 1957 / 1970 XL 1952 / 1956 K

Replica Magneto Driveshaft Assembly 1957 / 1970 XL 1952 / 1956 K

by V-TWIN MANUFACTURING
SKU 32-1346
Sold out
$148.47 - $148.47
$148.47
$185.55
$185.55 - $185.55
$185.55

OEM No:

Replica magneto driveshaft assembly comes assembled with hex top gear and cast iron base with raw finish. Cast iron base with pre-installed bushings features a raw unplated finish.Pieces can be cadium or zinc.Drive ring and center hub are zinc plated. Assembly includes spiral to drive tachometer as original. Drive gear must be installed with a drive gear pin when installing the pin press in and grind off excess length. Base will also accept a hex drive magneto unit cable driven gear and 34-1/4 tachometer cable. Tachometer drive gear and cable available separately. Order magneto head separately. This is the real deal Sportster advance mechanism as the factory supplied from 1965-1970 on the XLCH models Get Real! All components as original.

FITMENT

  • 1957 / 1970 XL
  • 1952 / 1956 K

    • TECH NOTES

  • Suggested to use with #32-1298 Magneto Assembly without Shaft.
  • Suggested to use with #37-1027 Contact Screw Washer and #13-0168 Adjusting Screw Spring with this Round Outer Rotation Ring.
  • Suggested to use with #36-0514 Magneto Tachometer Cable Driven Gear.
  • Suggested to use with #36-0513 Black Magneto Tachometer Cable.

    • ACCESSORY ITEMS

  • 32-1294
  • 32-1229
  • 37-1037
  • 32-1348

    • REPLACEMENT PARTS

  • 32-0823
  • 32-0515
  • 32-0516
  • 32-0584

    • Model Fitment
