XL Replica Magneto Driveshaft Assembly 1957 / 1970 XL 1952 / 1956 K

XL Replica Magneto Driveshaft Assembly 1957 / 1970 XL 1952 / 1956 K

by V-TWIN MANUFACTURING
SKU 32-1680
$305.19 - $305.19
$305.19
$353.14
$353.14 - $353.14
$353.14

OEM No:

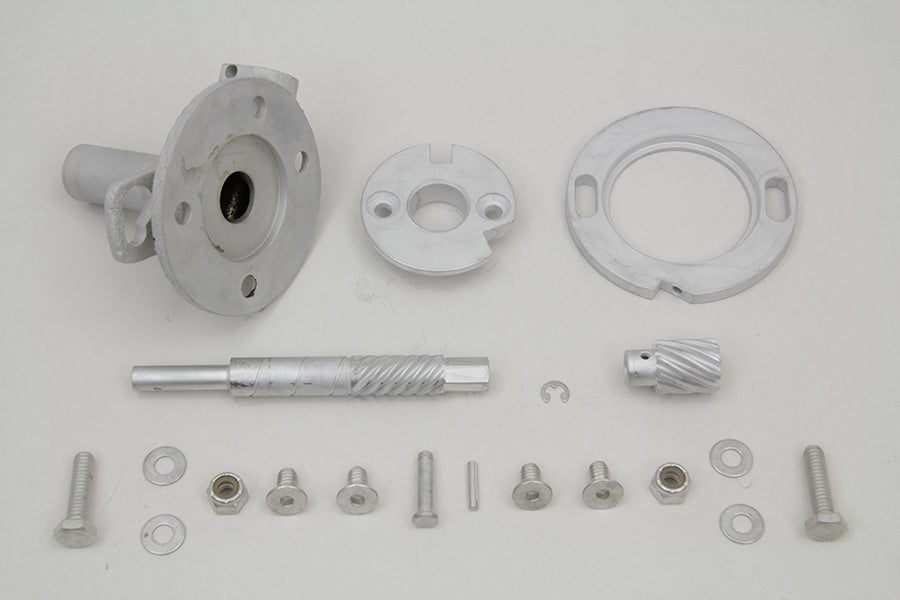

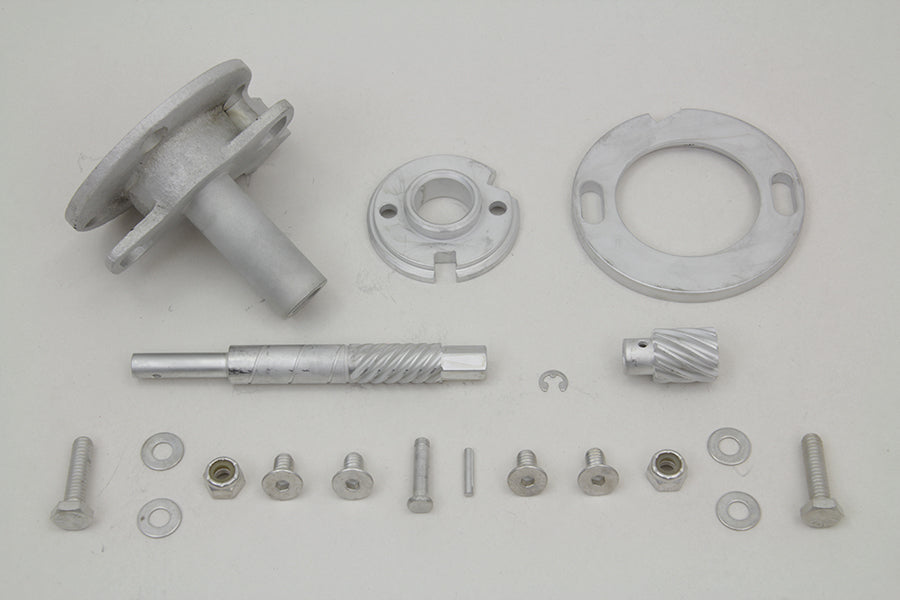

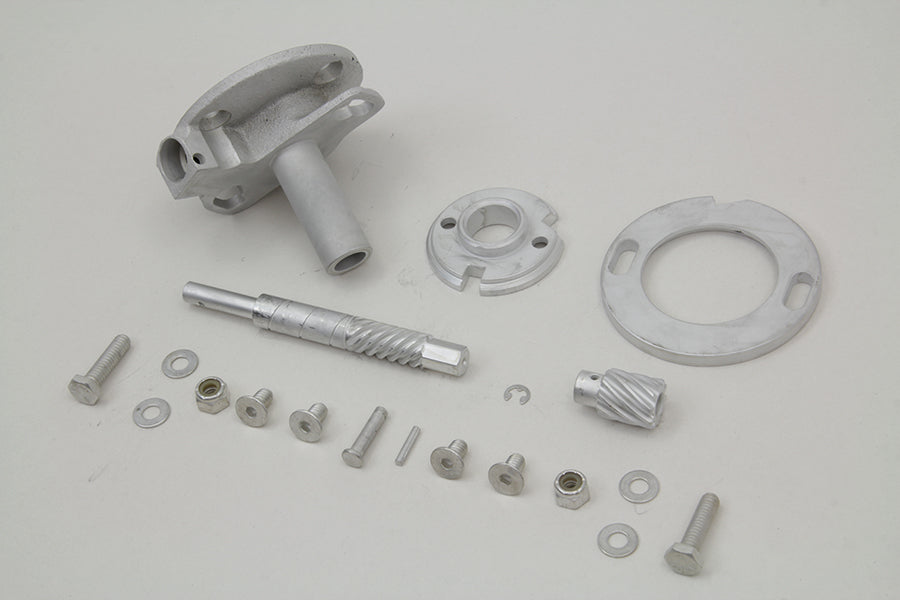

XL Replica magneto driveshaft assembly comes assembled with hex top gear and cast iron base with white zinc finish. Cast iron base with pre-installed bushings drive ring and center hub all features a cadmium white zinc finish. Assembly includes spiral to drive ta hometer as original. Drive gear must be installed with a drive gear pin when i stalling the pin press in and grind off excess length. Base will also accept a ex drive magneto unit cable driven gear and 34-1/4 tachometer cable. Tachometer drive gear and cable available separately. Order magneto head separately. This is the real deal Sportster advance mechanism as the factory supplied from 1965-1970 on the XLCH models Get Real! All components as original.

FITMENT

  • 1957 / 1970 XL
  • 1952 / 1956 K

    • TECH NOTES

  • Suggested to use with #32-1298 Magneto Assembly without Shaft.
  • Suggested to use with #37-1027 Contact Screw Washer and #13-0168 Adjusting Screw Spring with this Round Outer Rotation Ring.
  • Suggested to use with #36-0514 Magneto Tachometer Cable Driven Gear.
  • Suggested to use with #36-0513 Black Magneto Tachometer Cable.

    • ACCESSORY ITEMS

  • 32-1137
  • 32-1345
  • 32-1680
  • 32-1490

    • REPLACEMENT PARTS

  • 32-0583
  • 32-0582
  • 32-0580
  • 32-0584
