Chopper Gas Tank 23" Tunnel Uw / Cus Frm W / Spinner Cap Flush Bung 1 Piece 4.7 Gal W / Cus Mtg

Chopper Gas Tank 23" Tunnel Uw / Cus Frm W / Spinner Cap Flush Bung 1 Piece 4.7 Gal W / Cus Mtg

by MID-USA
SKU 81087
Sold out
$379.95 - $379.95
$379.95
$427.44
$427.44 - $427.44
$427.44

OEM No:

V-FACTOR STRETCHED 4.75 GALLON CHOPPER GAS TANKS FOR CUSTOM FRAMES

WEIGHT: 17.40
  • FRAME REQUIREMENTS:
    • 4" STRETCH IN THE FRONT DOWN TUBES
    • 3" MINIMUM STRETCH IN THE BACKBONE
    • BACKBONE O.D. CANNOT EXCEED 1 3/4"

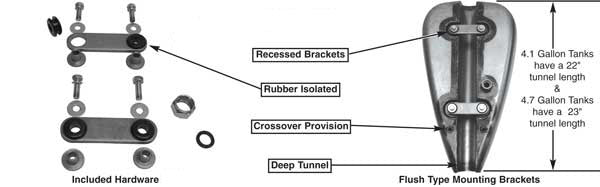

    • MOUNTING BRACKETS ARE RUBBER ISOLATED TO PREVENT VIBRATION CRACKS
    • WELD-TO-FRAME BRACKETS RECESS IN THE BOTTOM OF THE TANK FOR A HIDDEN LOOK
    • TAPPED 3/8-24 NPT AT REAR OF TANK FOR GAS CROSSOVER LINE (NOT INCLUDED)
    • USE WITH 13/16" (22 MM) FUEL VALVE
    NOTE: THESE TANKS MUST BE PRESSURE TESTED , SEALED AND PRE-MOUNTED ON FRAME TO VERIFY COMPATIBILITY OF ALL RELATED PARTS BEFORE PAINTING
    V-FACTOR
    RAW STEEL 4.7 GALLON TANK
    23" TUNNEL LENGTH
    FLUSH BUNG , SPINNER GAS CAP
